Nominal Pressure: 5 to 13 bar g
Motor Power: 90 - 132 kW
Volume Flow: 5.26 to 24.79 m3/min
Industry relies on Champion's large screw compressors 24 hours a day, 7 days a week.

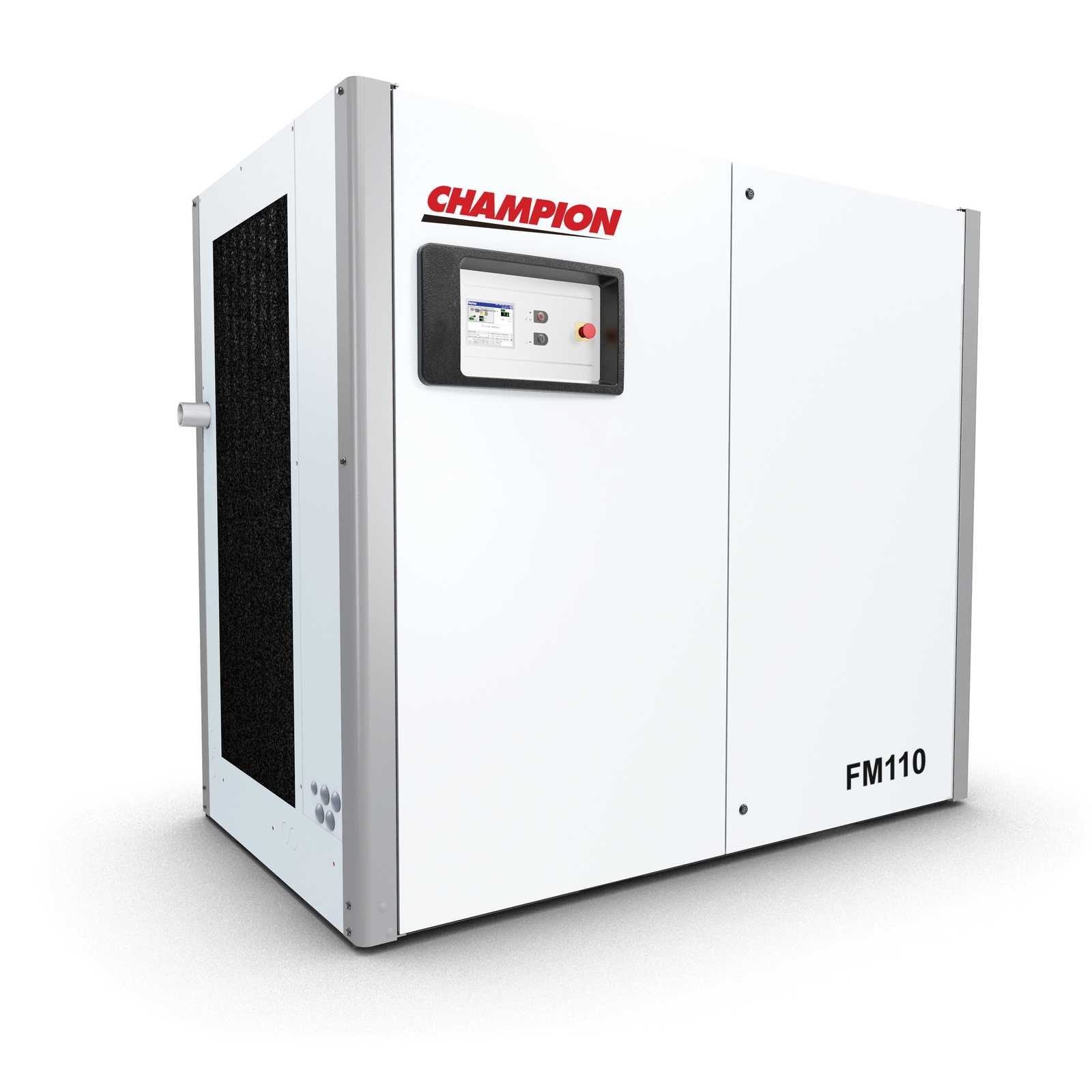

The new Champion 90 to 132 kW range has been completely redesigned with changes to all parts of the compressor including the airend, the controller and the cooling system.
Premium Efficiency Airend
The new highly efficient airend delivers the highest quality compressed air at a low rotational speed, to help minimise the unit’s energy consumption and achieve excellent performance. The manufacturing process is using the latest CNC rotor grinding machinery, coupled with on-line laser technology, in order to maintain precise manufacturing tolerances.
High efficiency cooling system
Thanks to the optimum cooling system, the compressor can work in high ambient temperatures of up to 46°C.
We maximise service life and durability by eliminating elastomer and thermoplastic pipe and tube in system pressure lines, replacing them with corrosion resistant stainless steel tubing and passive zinc coated carbon steel piping.

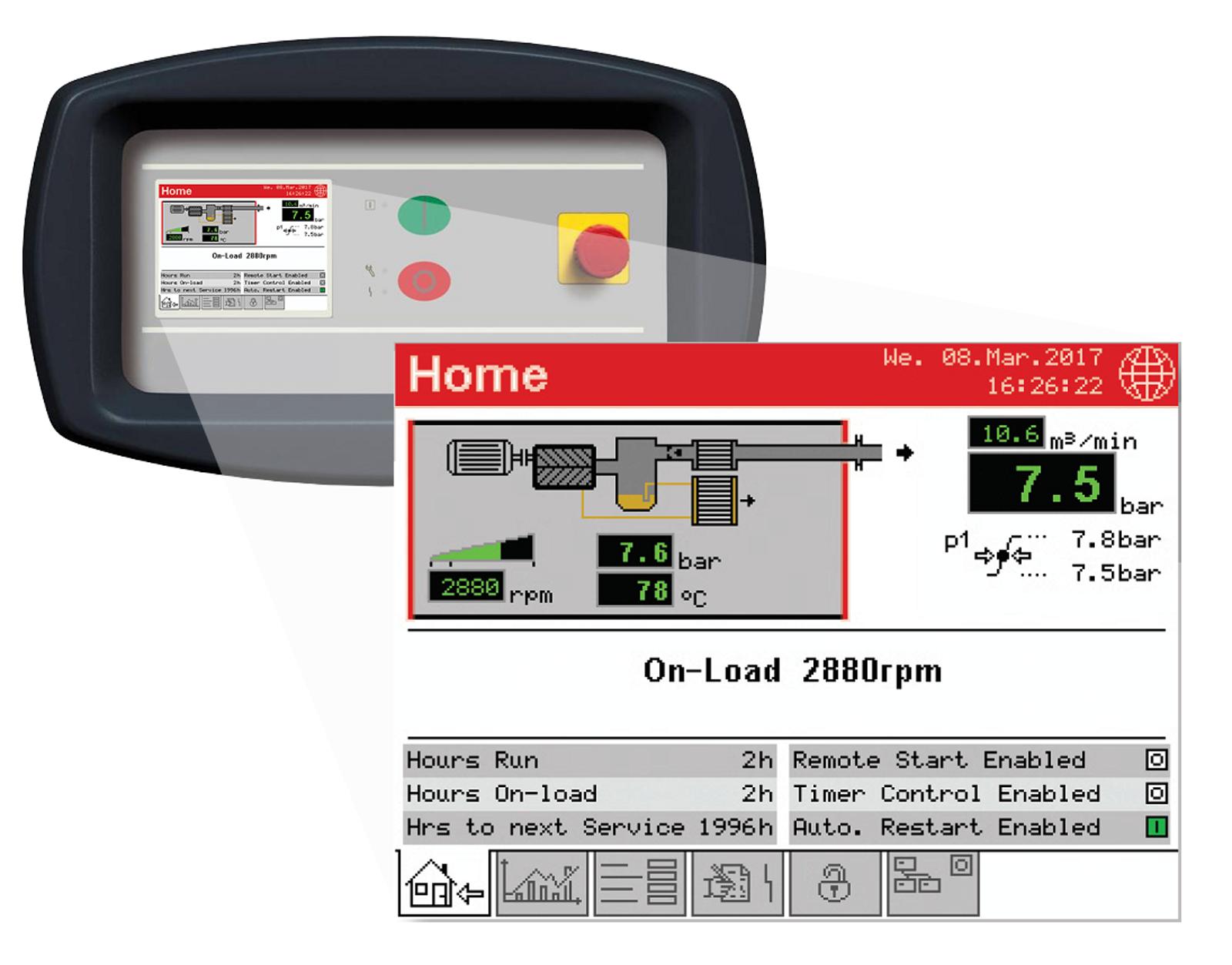

The controller Pilot TS has the possibility to connect with iConn monitoring device. iConn is the smart, proactive real-time monitoring service that delivers in-depth and real-time knowledge on the system to our compressed air users. It enables accurate production planning and total peace-of-mind protection. iConn keeps users informed on performance, at the same time highlighting potential issues before they become a problem.
Compressor Controller Pilot TS Features & functions
Maintenance personnel welcome the FM series compressor range

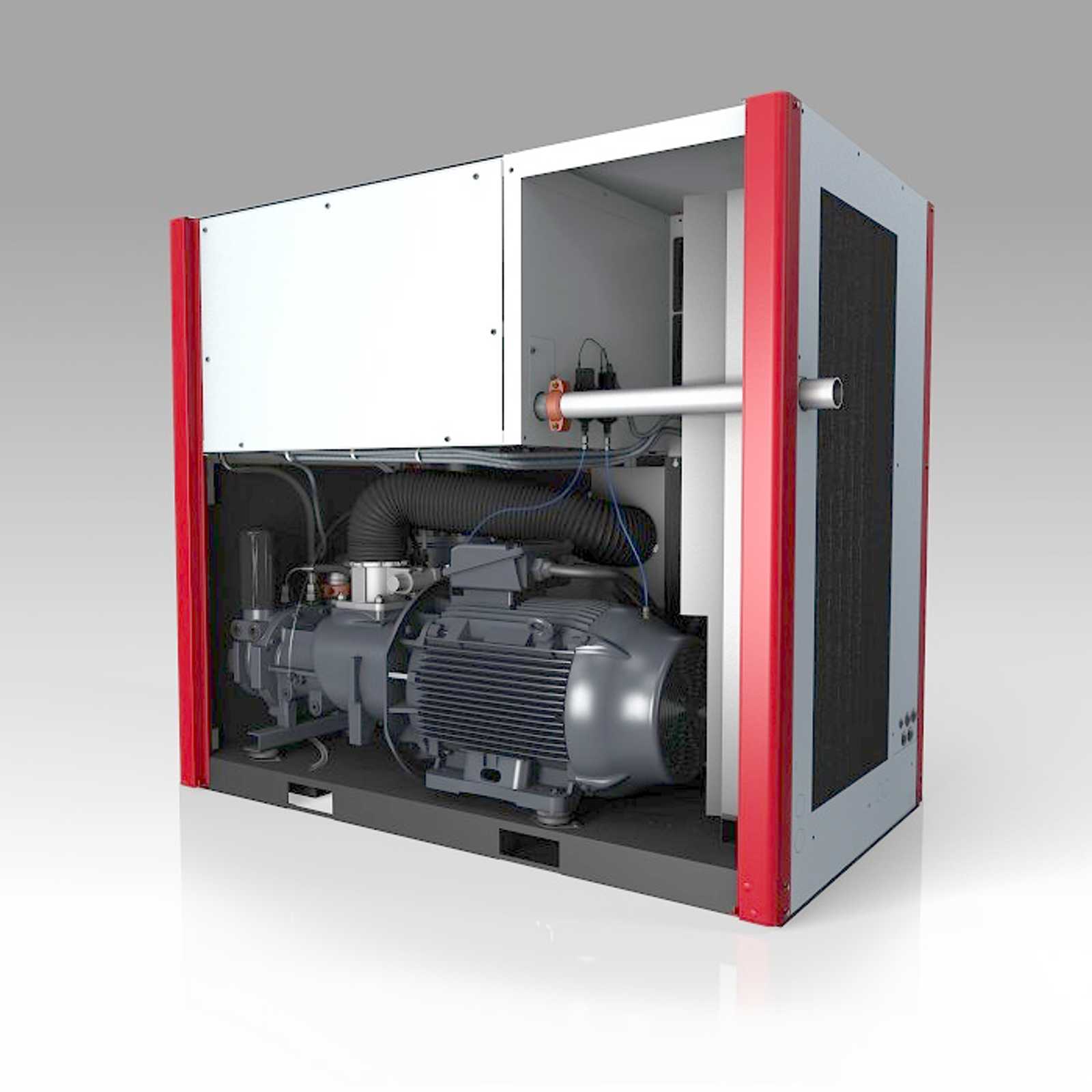

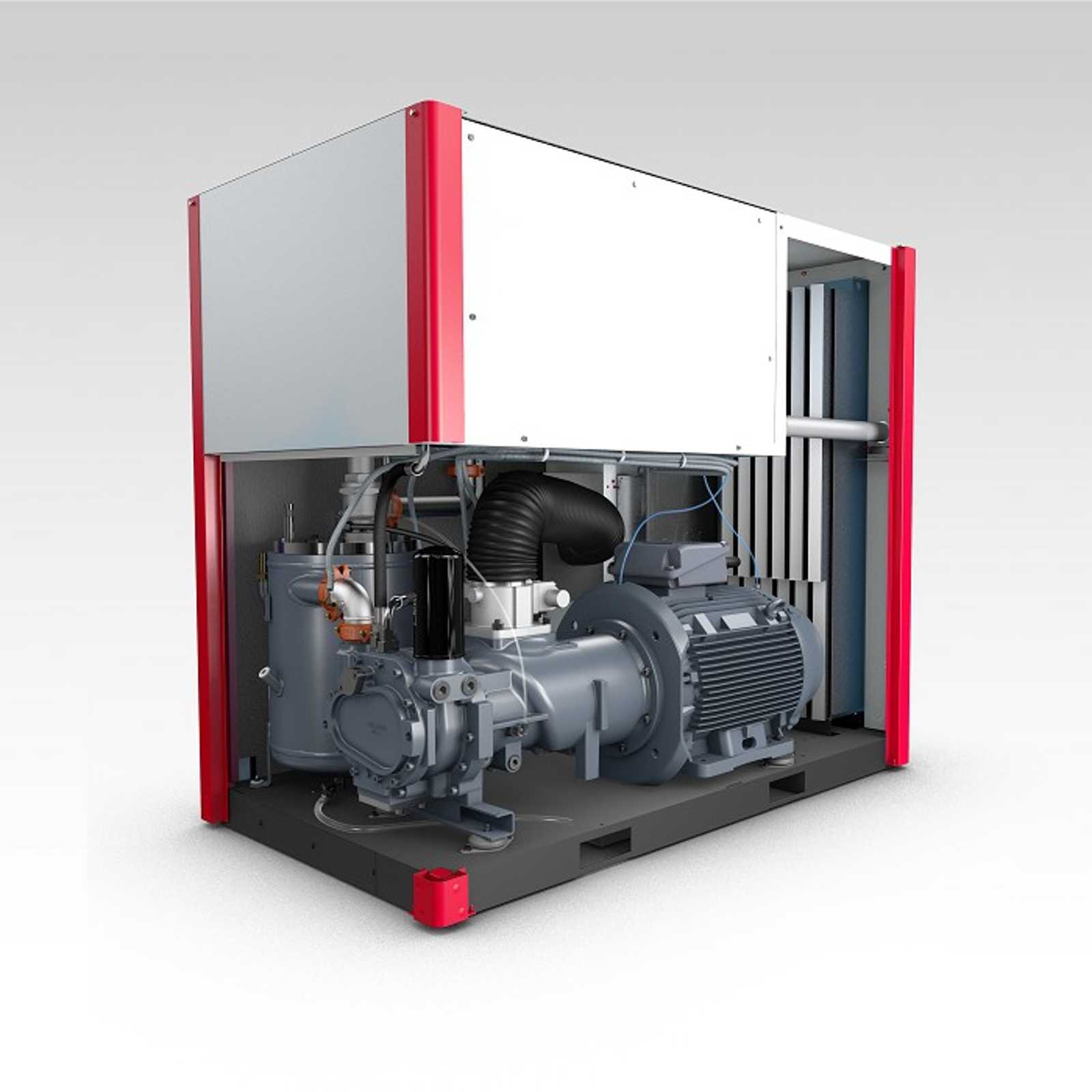

Service access is quick and easy with all doors able to be removed in seconds. We’ve also made sure serviceable components including filters are easily accessible and no piping needs to be disconnected to service the separator.
Optimised drive concept
With direct or gear drive coupling, the belt free FM 30-45 Series compressor range not only reduces transmission losses, it improves efficiency and reduces noise. Most importantly, it delivers greater reliability and reduced maintenance costs.
Energy efficient motor
High efficiency TEFC IE3 electric motors are fitted as standard to the entire FM 30-45 Series screw compressor range, reducing not only power consumption but also CO2 emissions.

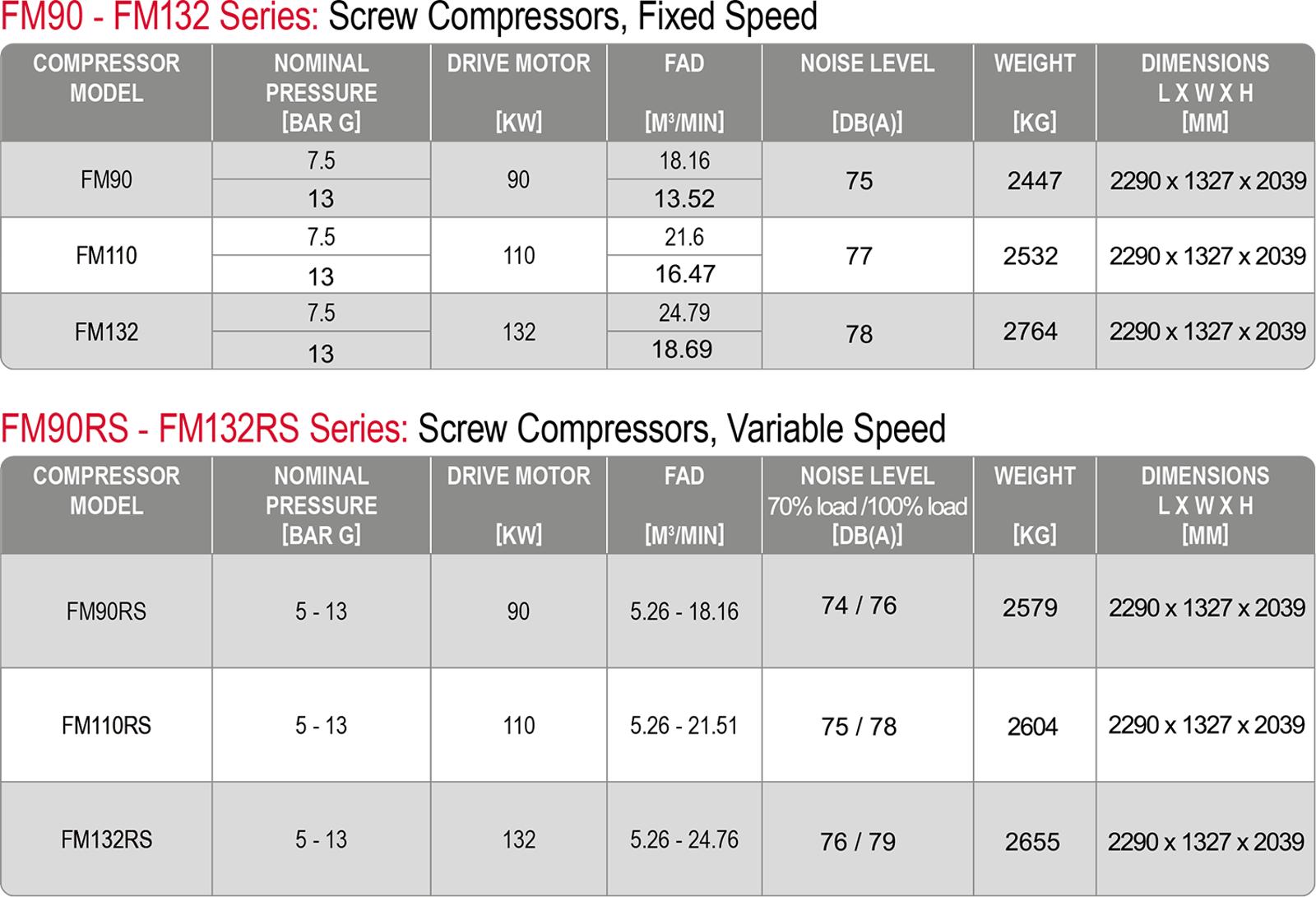

Oil flooded, Single stage rotary screw compressor, direct drive, star / delta starting
Pressure Range: 7.5 to 13 bar g
Electric motor: 90 to 132kW - IE3
