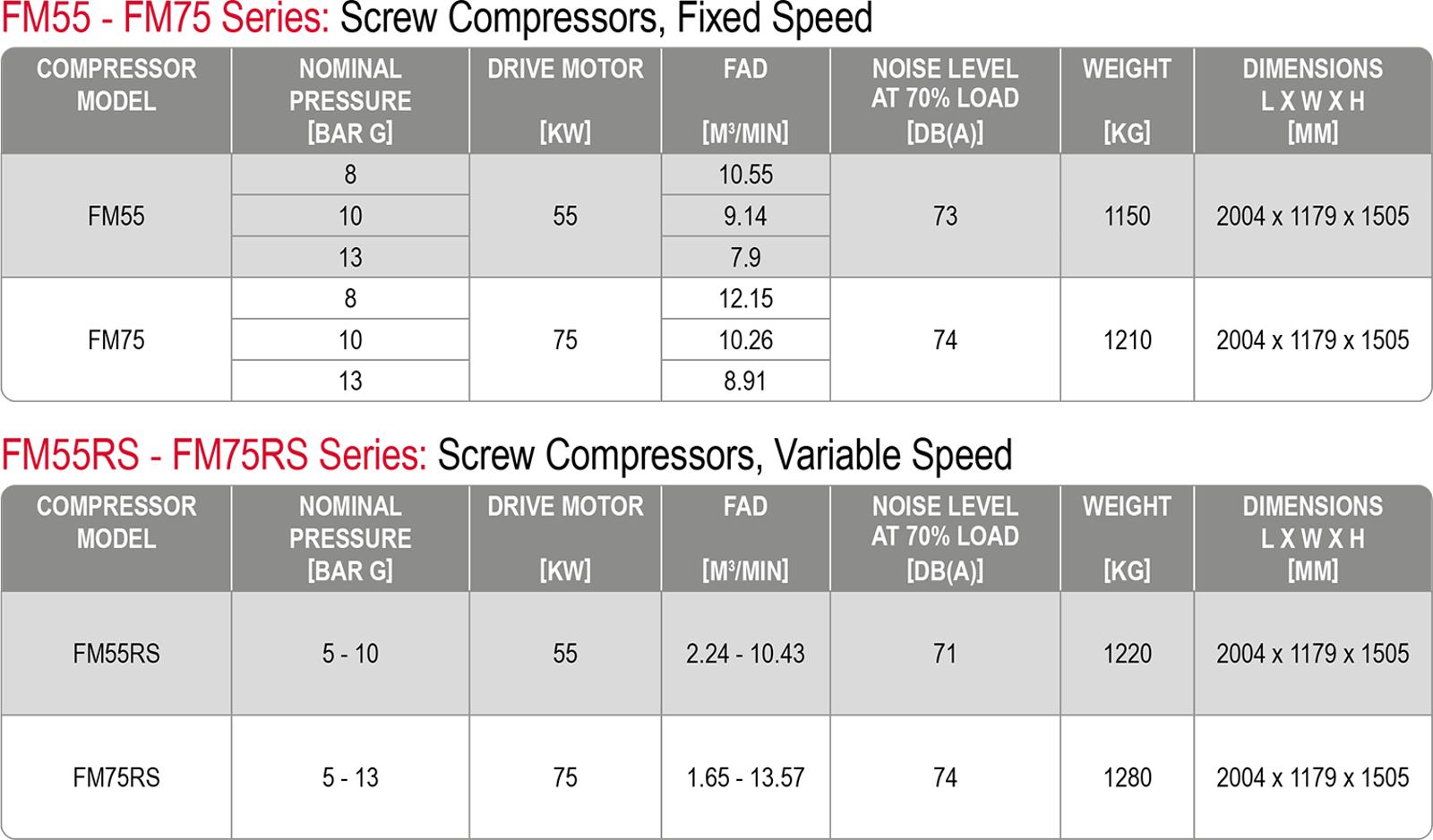

Nominal Pressure: 8 to 13 bar g
Motor Power: 55 - 75 kW
Volume Flow: 1.65 to 13.57 m3/min

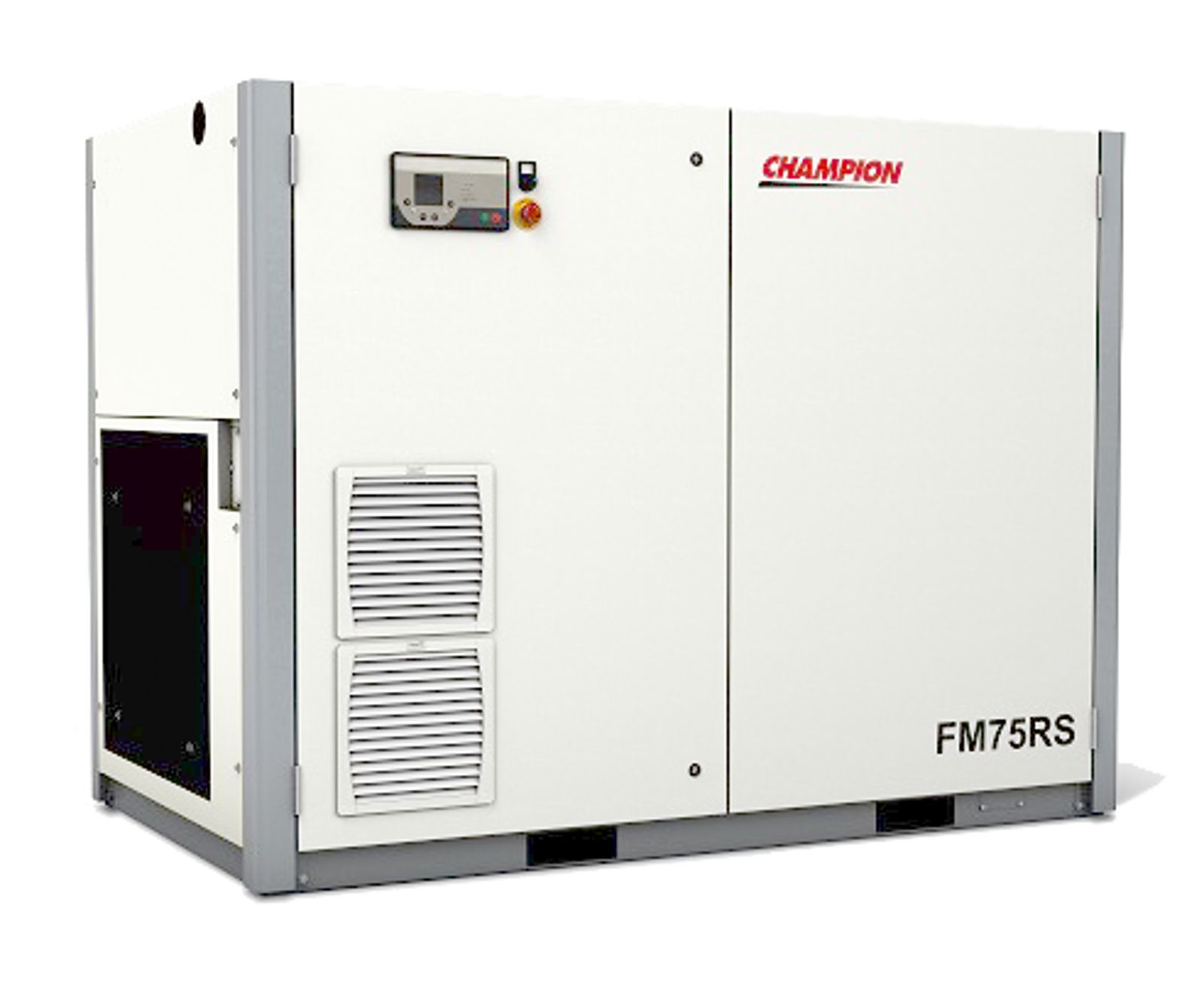

Variable speed compressors can efficiently and reliably handle the varying air demand found in most plant air systems. These compressors speed up and slow down to match air supply to air demand as it fluctuates. The right variable speed compressor in the right application delivers significant energy savings and a stable, consistent air supply.
All our airends have the unique semi-integrated design with oil filter & intake valve as shown in the below diagram. This integrated design offers a very compact solution which is not only easy to service but minimizes leakage risks with less piping & fewer parts. New FM series 30-75 kW features premium quality airends designed and manufactured in house.
The manufacturing process is using the latest CNC rotor grinding machinery, coupled with on-line laser technology, in order to maintain precise manufacturing tolerances, click the airend video tab to learn more about this process.
High efficiency cooling system
Thanks to the optimum cooling system, the compressor can work in high ambient temperatures of up to 46°C.
We maximise service life and durability by eliminating elastomer and thermoplastic pipe and tube in system pressure lines, replacing them with corrosion resistant stainless steel tubing and passive zinc coated carbon steel piping.

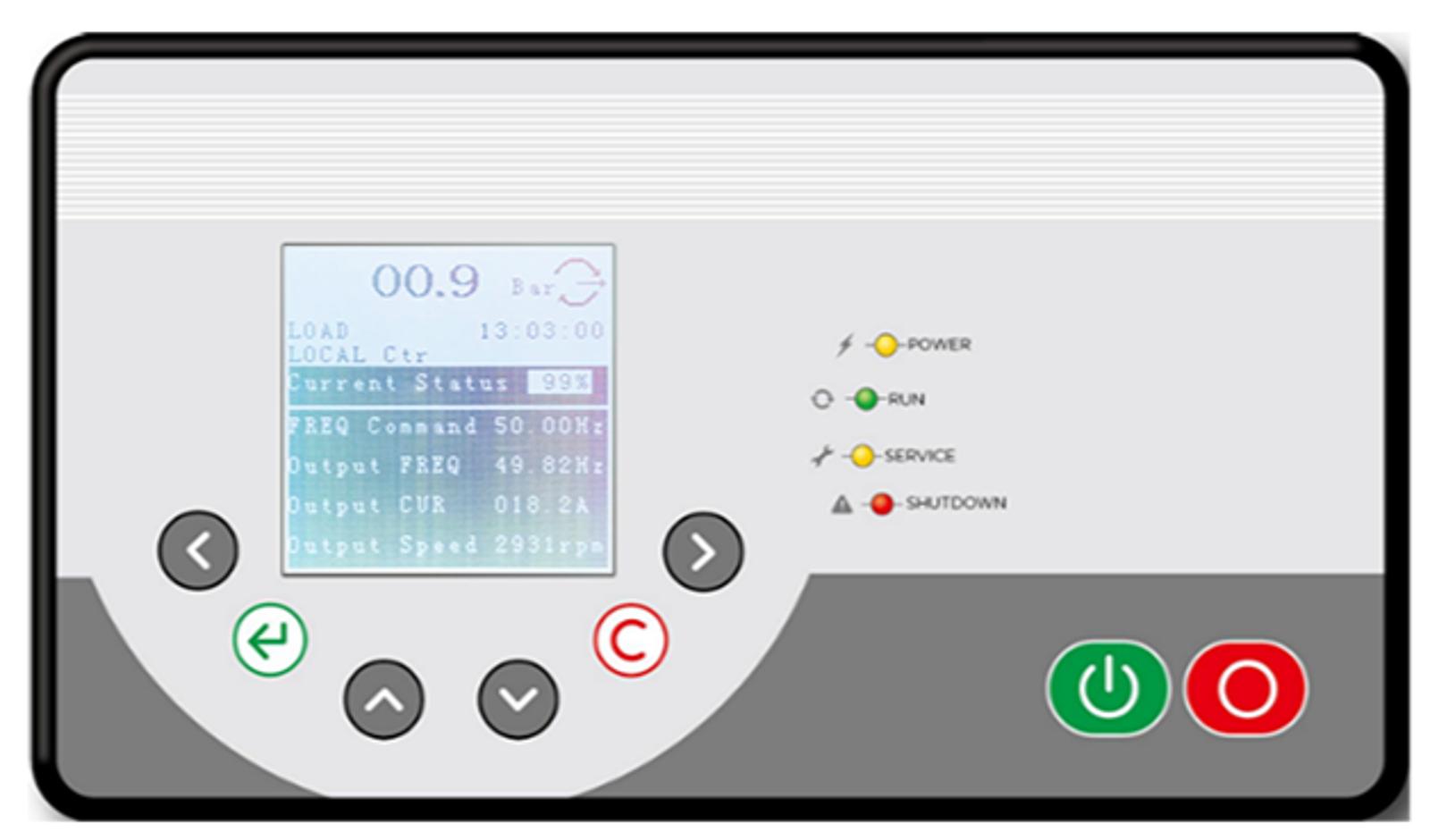

The C-PRO 2.0 controller was designed to make the operators’ interface with the variable speed drive transparent. This new generation controller features extra functions for variable speed compressors like drive status display and flexible PID setting according the application. You don’t need to be an expert on variable speed drives to operate your compressor. The controller takes care of the details and automatically adjusts the compressor performance to meet your changing air system demands - saving you energy. Changing the discharge pressure is as easy as pressing a button.
New advanced controller C-PRO 2.0 ensures reliable operation and protects your investment by continuously monitoring the operational parameters
Maintenance personnel welcome the FM series compressor range
Service access is quick and easy with all doors able to be removed in seconds. We’ve also made sure serviceable components including filters are easily accessible and no piping needs to be disconnected to service the separator.
Optimised drive concept
With direct or gear drive coupling, the belt free FM 30-45 Series compressor range not only reduces transmission losses, it improves efficiency and reduces noise. Most importantly, it delivers greater reliability and reduced maintenance costs.
Energy efficient motor
High efficiency TEFC IE3 electric motors are fitted as standard to the entire FM 30-45 Series screw compressor range, reducing not only power consumption but also CO2 emissions.

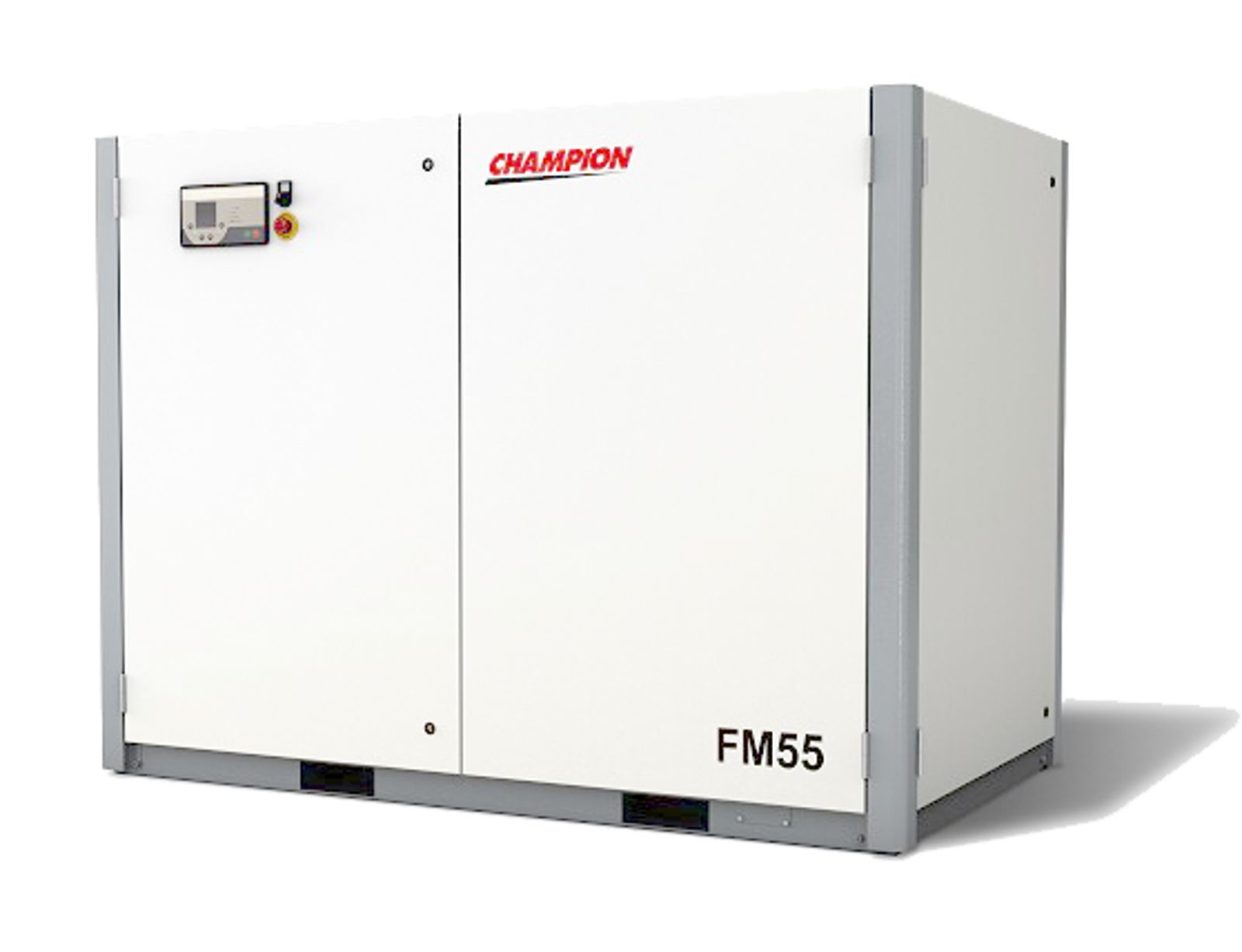

Oil flooded, single stage rotary screw compressor, belt drive, direct start or star / delta starting
Pressure Range: 8 to 13 bar g
Electric motor: 55 to 75kW – IE3
