A New Generation of Highly Efficient Screw Compressors
Reach Out to Us
The new Champion range of screw compressors are at the cutting edge of compressor design giving you with the ultimate compressed air package, where affordability & reliability are the key requirements for your process. These models have been completely redesigned to encompass the latest improvements in compressor engineering.
A series of technologically advanced compressors, resulting from a well established research and development process, means that each new generation of models incorporate advances learnt from many 1000's of running hours in the field by it predecessor.
The FM series offer the following benefits:
- Performance improvement up to 10%
- Single stage rotary screw models
- Fixed and variable speed models from 2 kW
- Star / Delta starting from 4 kW
- Pressure range 5 to 13 bar
- Electric motor 2.2kW to 132kW - IE3
- Modular design including receivers and dryers up to 22 kW
- C-PRO 1.0, C-PRO 2.0 and Pilot TS electronic controllers
- Certified for European regulations
- Easy Service with 4000h, 8000h kits
- Extended warranties available up to 5 years.
Please select a kW size:

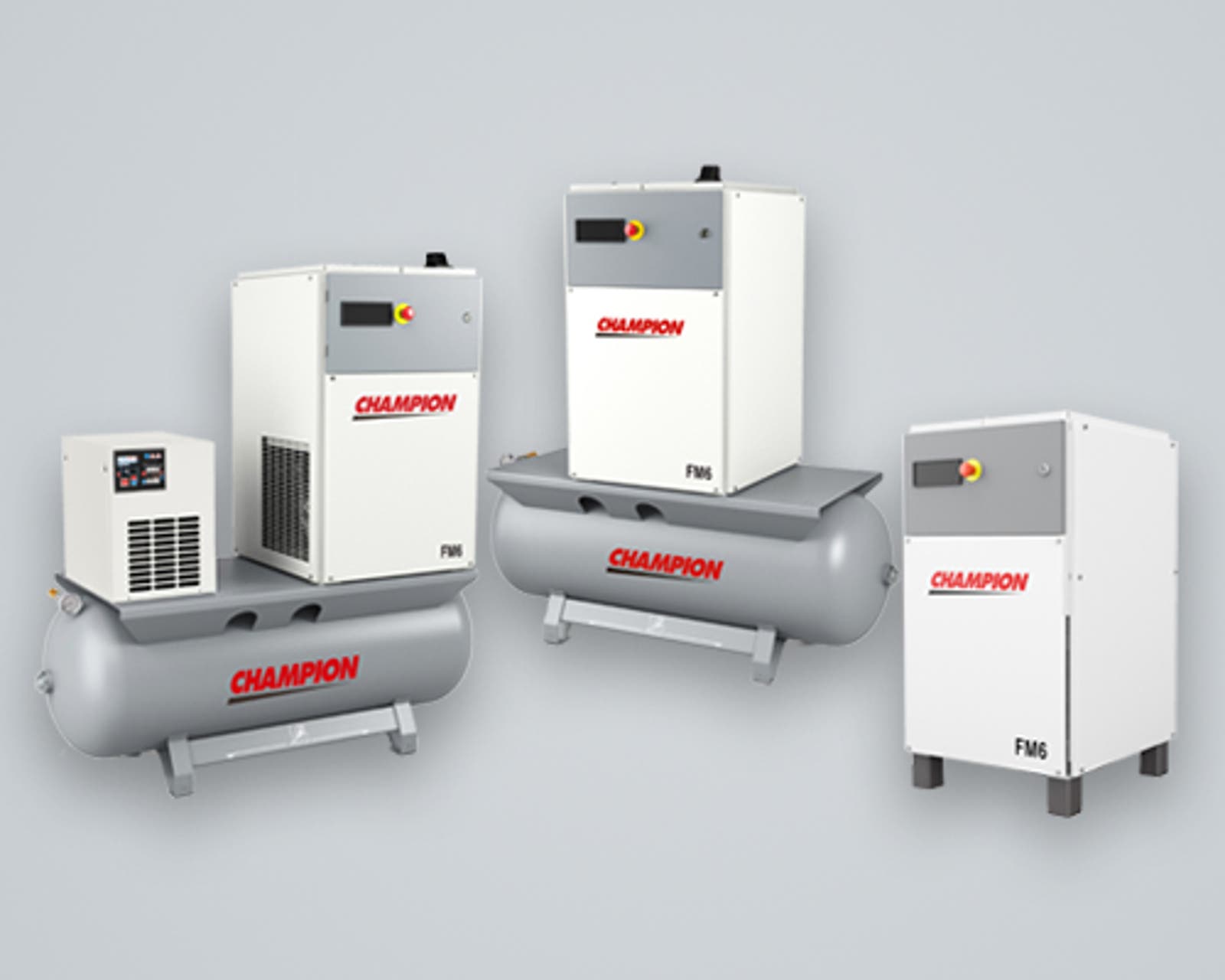

FM 2 to 7.5kW
Pressure up to 10 bar
Capacity from 0.18 to 0.89 m3/min

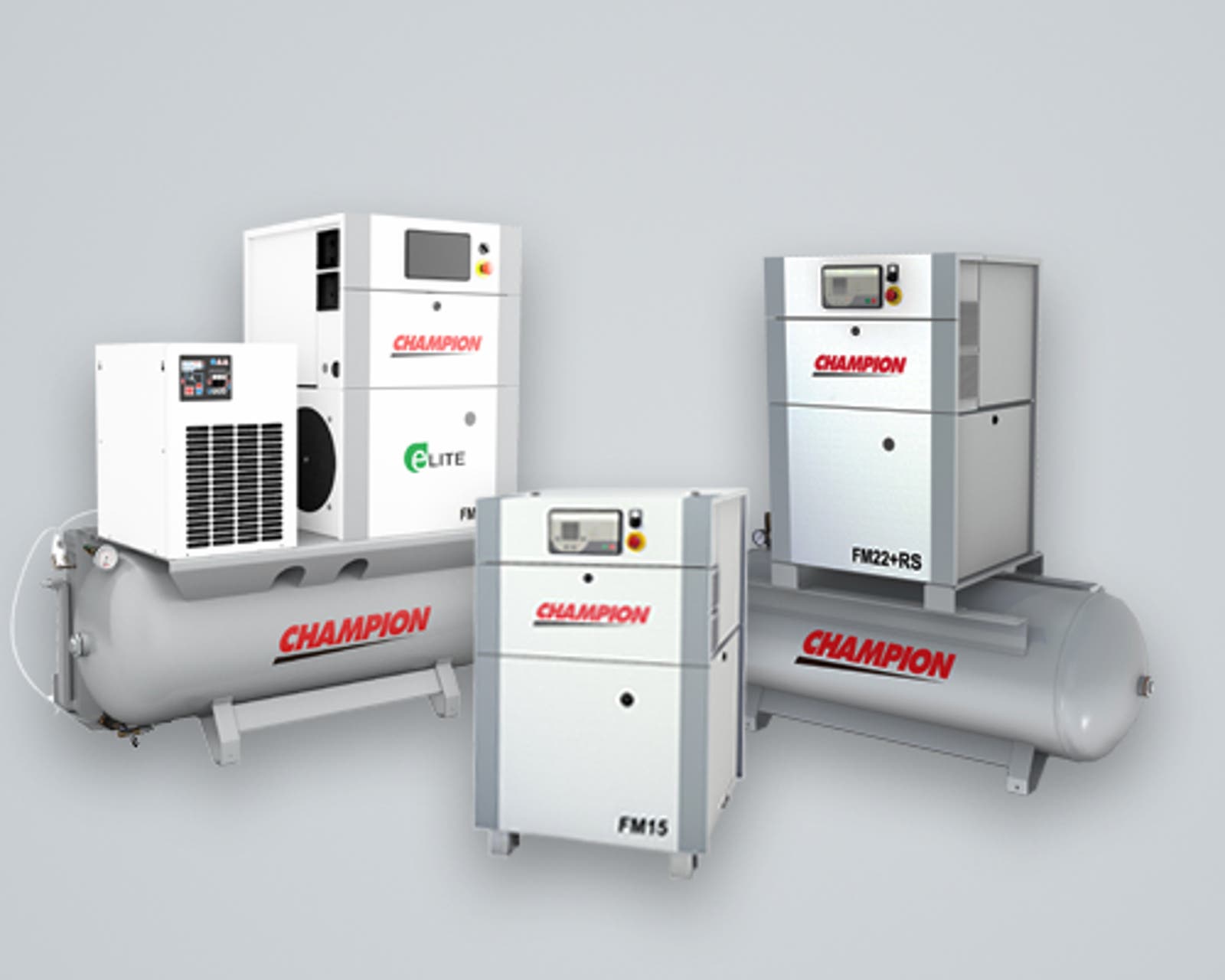

FM 7.5 to 22kW
Pressures 5 to 13 bar g -
Capacity from 0.45 - 3.50 m3/min

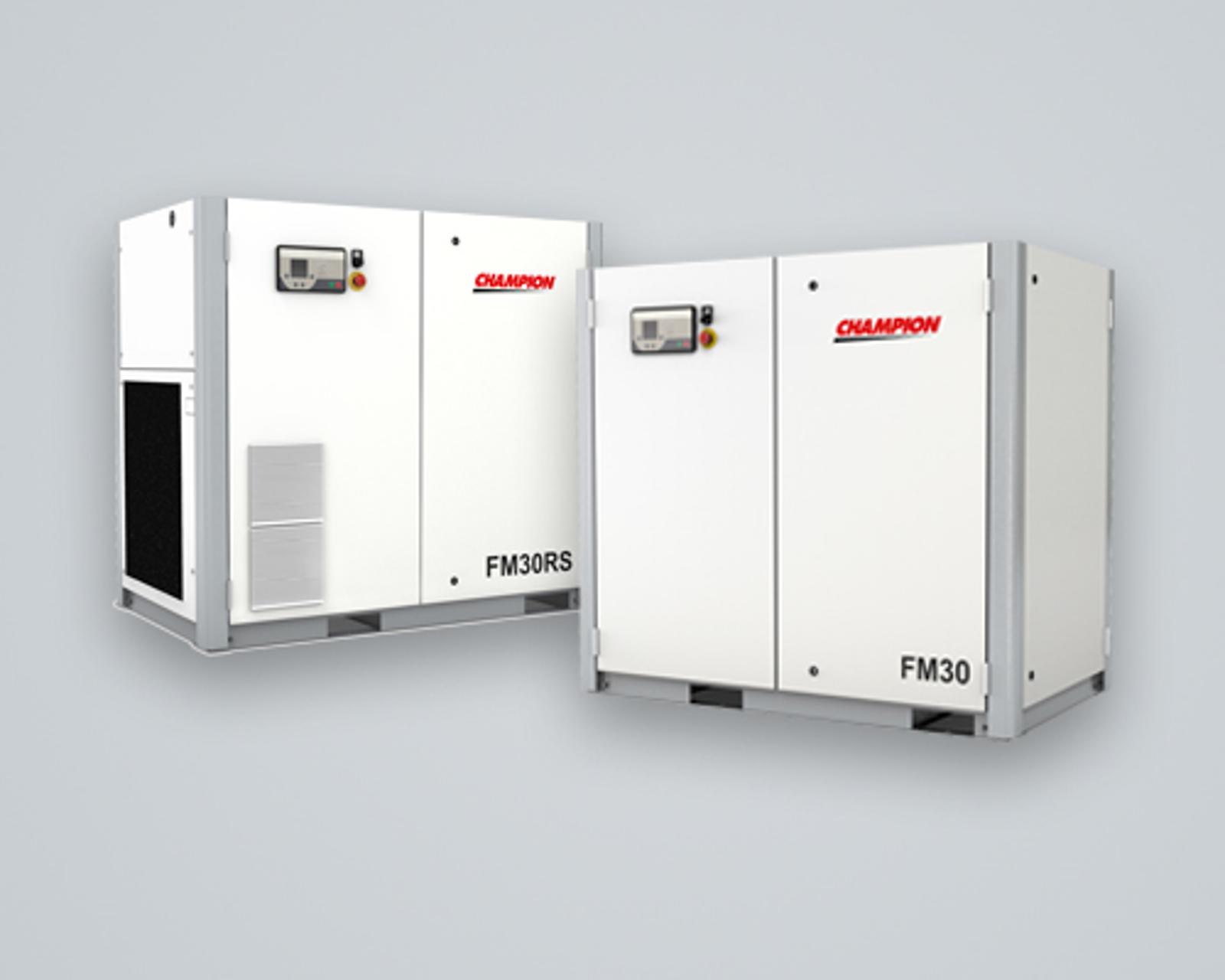

FM 30 to 45kW
Pressures 5 to 13 bar g -
Capacity from 1.19 to 7.84 m3/min

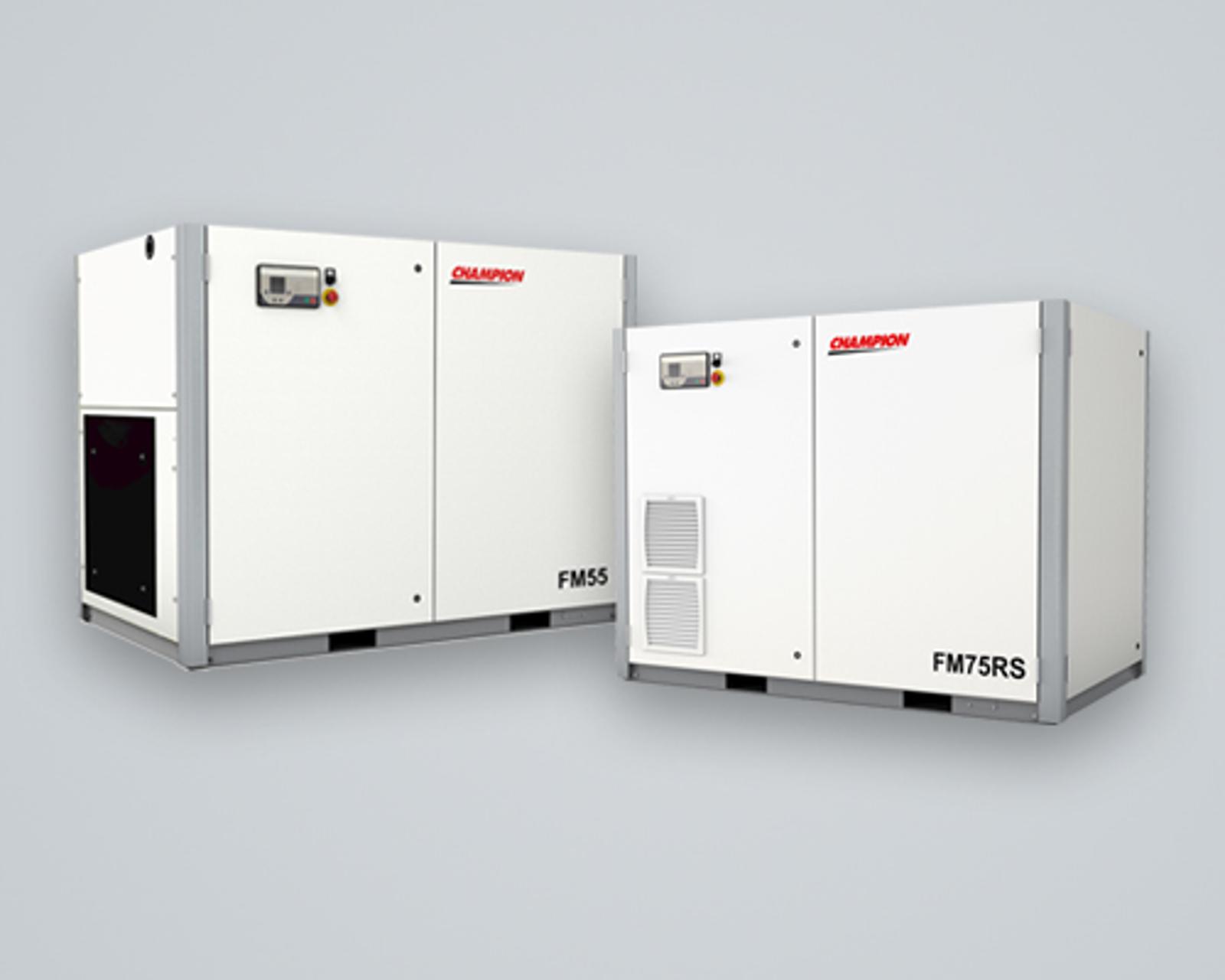

FM 55 to 75kW
Pressures 5 to 13 bar g -
Capacity from 1.65 to 13.57 m3/min

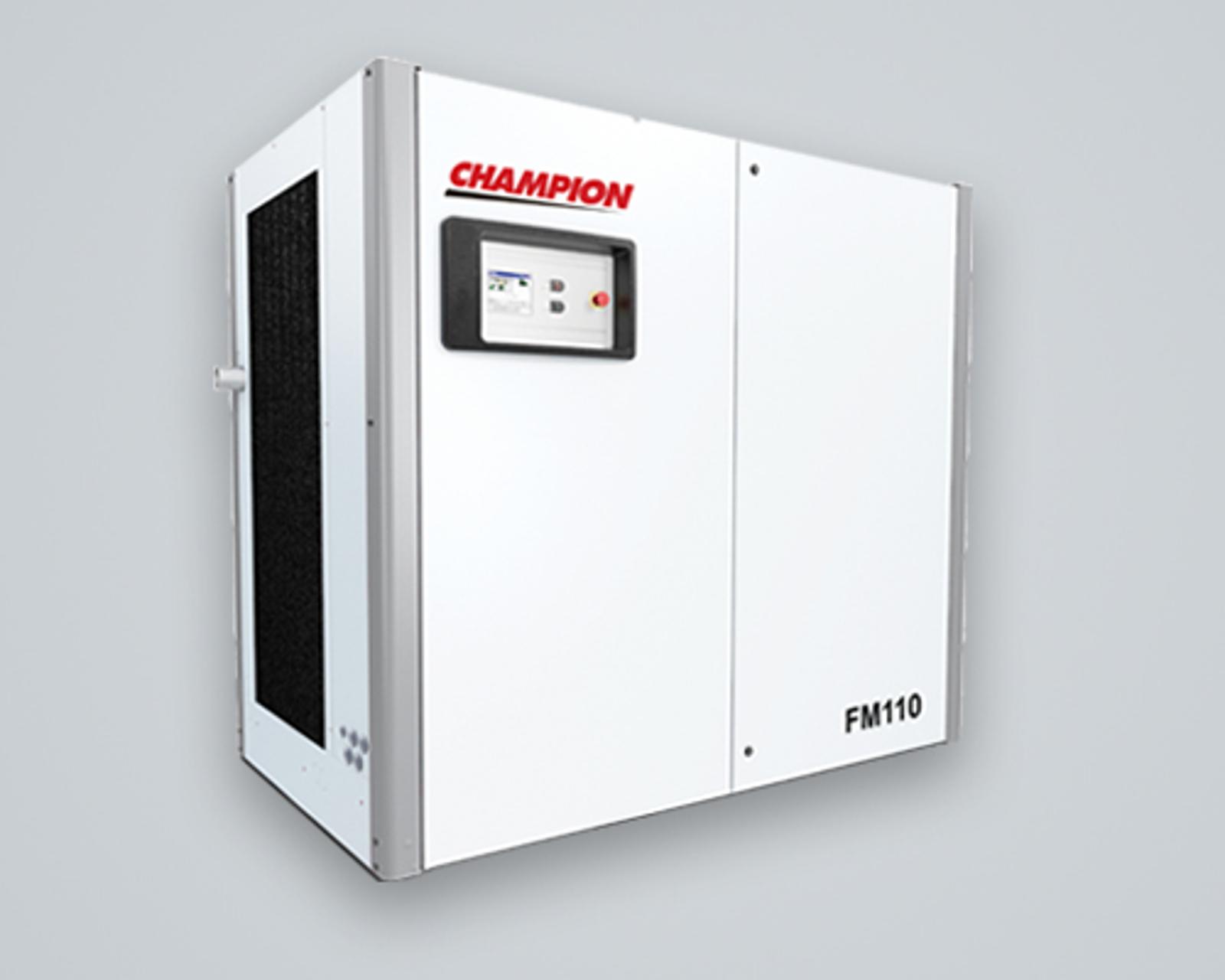

FM 90 to 132kW
Pressures 5 to 13 bar g -
Capacity from 5.26 to 24.79 m3/min
